The concerns about PFAS keep coming. Friends of the Earth has just received two GIPA requests from WaterNSW and Sydney Water. The information we requested concerned detections of all PFAS chemicals through their drinking water supplies. Over the past 6 months, WaterNSW and Sydney Water have conducted hundreds of PFAS tests and have published online PFAS results pertaining only to those listed under the Australian Drinking Water Guidelines, namely PFOS, PFHxS and PFOA.

Sydney Water however screen for a total of 45 PFAS chemicals, with WaterNSW screening for 30. FoE was interested in what else was being detected. Information gathered from the GIPA requests was presented to Select Committee of PFAS contamination in Waterways and Drinking Water throughout New South Wales by FoE researcher Anthony Amis on February 5.

Help keep us looking at the PFAS menace. We need funds to continue data collection from around Australia. Tax deductible donations here

Map of Sydney area showing main Reservoirs. The highest PFAS loads over 2024 were centred on Cascade Water Filtration in the Blue Mountains and North Richmond WFP, both marked with red pins. The highest PFBA detections in 2024 occurred at Woronora, Macarthur, Nepean and Illawarra Water Filtration Plants and all in October/November.

Friends of the Earth applied under GIPA laws in January after seeing some data from the Blue Mountains pertaining to the water supplies of Katoomba and Blackheath from December. Both communities have been dealing with the daunting issue of coming to terms with drinking PFAS contaminated water possibly since the early 1990's. The information was gained by Blue Mountains PFAS Free campaigner Jon Dee. The information highlighted that the highest detection of PFAS chemicals in both water supplies in December was three detections of PFBA (perfluorobutanoic acid) when testing was conducted by Sydney Water. The highest levels were detected on December 16th, with a PFBA detection of 0.028μg/L (28ng/L) accounting for 68% of the entire PFAS total at Blackheath on that day. The follow up tests on December 23rd at Blackheath revealed no PFBA. Similarly Katoomba had a PFBA detection of 0.029μg/L (29ng/L) of the 16th of December and 0.15μg/L (15ng/L) one week later.

Graph of Cascades Katoomba Reservoir between June and December 2024 highlighting three spikes of PFBA in October, November and December. The highest rainfall at Katoomba occurred on October 19 (11mm), with the highest rainfall in November occurring on the 18th (23.8mm), the 29th (27.4mm) and the 30th (66.8mm). Rainfall in December was low with the highest amount being 6.4mm on December 5. PFBA "spikes" occurred at Cascades on October 22, November 12, December 16 and December 23. The 6:2 FTS spike occurred on November 25.

PFBA spikes at the Cascade Water Treatment Plant Raw Water Tap also occurred November 12, 14, 20 and December 23 and 30.

Why wasn't there a subsequent spike of other PFAS chemicals on the dates of concern?  PFBA is known to be volatilised in the atmosphere. Could it be drifting in on clouds coming from Sydney? But PFBA is not the only PFAS chemical that can be volatised.

Graph of Cascades Blackheath Reservoir highlighting three spikes of PFBA in October, November and December.

The WaterNSW GIPA request revealed limited PFBA detections in rural NSW and detections of PFBA in two Sydney Water Filtration Plants, Warragamba and Prospect. The levels detected were higher than other PFAS chemicals, apart from a high detection of 6:2 FTS at Macarthur WFP on the 29th of October. Because there have been relatively few PFAS detections in Sydney Reservoirs, these detections would be seen to be unusual.

The Sydney Water GIPA request showed high PFBA levels (>20ng/L) at Katoomba/Blackheath Cascade WFP in October and November and North Richmond WFP in October, November and December. However higher spikes occurred at Nepean WFP (34ng/L) in October 15 2024, Illawarra WFP (49ng/L) November 11 2024, Woronora WFP (64ng/L) on November 19, Macarthur WFP (69ng/L and 28ng/L) on November 19 and October 22nd. No PFBA was detected by Sydney Water at Warragamba or Prospect WFP's, counter to the two detections by WaterNSW and none at Orchard Hills.

The 'dominance' of PFBA in the Sydney Water/Water NSW PFAS profile is highlighted in this table. At many locations PFBA dominates almost all PFAS detections. Rainfall does not fully explain the highest levels of PFBA because high rainfall events in Sydney in late September don't appear to have caused a rise in PFAS detections, although testing probably has to occur when the rainfall events actually occur.

Almost 85 per cent of Greater Sydney households, around 4.3 million people, receive their drinking water from the Prospect Water Filtration Plant, which takes in and treats water from Warragamba Dam, Upper Nepean Dam, and Prospect Reservoir. PFBA detections accounted for about one quarter of all PFAS detections at Prospect WFP. Warragamba WFP had PFAS detections of about 15% of all PFAS chemicals in Sydney region and Orchard Hills had no detections of PFBA.

The high PFBA result on 3 December corresponds to 30mm of rain being recorded at Eastern Creek, 2 km west of Prospect Reservoir between November 30 - December 2. Six PFAS chemicals were detected at Prospect WFP on the 3 of December.

Woronora's catchment is forested. What is the source of the PFAS? Campbelltown is about 10km north west of Woronora WFP. The high PFBA detection at Woronora occurred one day after 19.2mm of rainfall occurred at Campbelltown on the 18th of November. Campbelltown however recorded 73mm of rainfall between November 29 and December 1 without a detection of PFBA when testing occurred by Sydney Water on December 2.

Rainfall recorded at Campbelltown during the later half of 2024. Rainfall doesn't fully explain PFBA detections, but does help explain the highest PFBA detection on November 19.

Illawarra WFP is located to the west of Wollongong. About 34mm of rain occurred in Wollongong on the 18th and 19th of October.

Nepean WFP also sources water from a 'closed' forested catchment. Rainfall doesn't fully explain PFBA detections at Nepean in mid October, although 7.4mm did fall at Bargo on October 15th, the same date as the PFBA detection.

Macarthur Water Filtration Plant is another of the four reservoirs located to the south of Sydney that recorded high PFBA detections in October 22 and November 19. Perhaps the spike in November was caused by the Wollongong rainfall event, but is perhaps better explained by the rainfall event at Campbelltown on 18th of November?

Warragamba Water Filtration Plant recorded one PFBA spike on September 9th. Rainfall doesn't explain the spike at Warragamba. Warragamba recorded consistent levels of PFOS and PFHxS at between 0.0006 and 0.0009ug/L over the testing period.

The North Richmond WFP appears to be more influenced by whatever is flowing down the Hawkesbury River. A "Flatter" PFAS spike occurred at North Richmond WFP Reservoir for a month in October-November 2024. Very little rain was reported at Richmond in October, but 30mm fell on the 26th and 27th of September. 18mm of rain fell at Richmond on November 18 and 34mm on the 29th and 30th of November. The most rain at Richmond in December occurred on the 8th (15mm). The PFBA "spike" was detected a week later.  10 different PFAS chemicals were detected at Richmond WFP. PFBA accounted for 38% of all PFAS chemicals detected at North Richmond between June -December 2004.

Perfluorobutanoic acid (PFBA) is a breakdown product of other PFAS chemicals. It is a short chain PFAS chemical, meaning that it should have a shorter half-life than long chain PFAS chemicals such as PFOS. High levels of PFBA have resulted in thyroid and liver effects. Water filters such as reverse osmosis and granular activated carbon will decrease exposures to PFBA. PFBA can dissolve faster than other PFAS chemicals meaning that it does not stick as well to soil. PFBA has been detected throughout Melbourne and can disperse long distances via atmospheric transport and precipitation. Perhaps Sydney Water should embark in widespread tap water samples throughout Sydney to determine if PFAS chemicals such as PFBA are getting through filtration plants and ending up in tap water.

A graph of PFAS chemicals detected by Sydney Water in terms of most prevalent. The GIPA Request was broken into two components, this graph deals mainly with PFAS detections in reservoirs and water treatment plant inlets.

Although PFBA was detected less than 30 times by Sydney Water, its average detection far exceeded other PFAS chemicals, indicating that when it was detected it was detected in higher amounts than other PFAS chemicals. The most toxic PFAS chemical however is PFOS, which was the second most commonly detected PFAS chemical with the third highest average detection level.

Water NSW also conducted testing at various locations across NSW in the second half of 2024. This graph highlights the percentage of the total PFAS chemicals detected at each of the 4 geographical areas. The high PFPeA detection in Rural NSW duplicate was explained by one detection at Carcoar Dam. The high 6:2 FTS and PFBA detections were due to a spike at Macarthur WFP and Prospect WFP's respectively. Seven locations in rural NSW detected PFAS chemicals. Eight locations in the Sydney Region, Cascade WFP in the Blue Mountains and Duckmaloi WFP in the Fish River scheme also detected PFAS by Water NSW. Cascade WFP was tested once a week by Water NSW from July, with the Sydney locations tested monthly from September. Several rural locations were tested once in December, with a duplicate sample also taken. Almost 55% of all Water NSW detections were detected at Cascade WFP. The graph highlights the dominance of PFHxS and PFOS in WaterNSW testing. The only 6:2 FTS and PFBA detections were in the Sydney Region. WaterNSW conducted no tests at North Richmond.

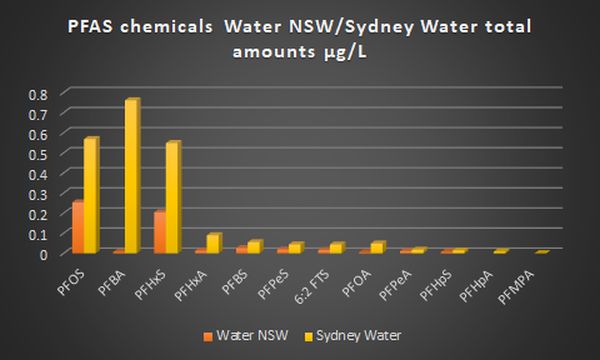

Comparison between Sydney Water and WaterNSW tests highlights markedly higher detections of PFOA, PFBS, PFPeS, PFBA, PFHpA and PFPeA. Sydney Water detected two times more PFAS detections than Water NSW.

Comparison of detections of all PFAS chemicals by WaterNSW and Sydney Water highlights a minimal amount of PFBA in Water NSW testing, with PFBA being the chemical detected in the highest volumes by Sydney Water testing. Water NSW PFAS testing in 2024 in the Sydney region occurred mainly on dry days. The highest levels of PFAS chemicals in the Sydney region in testing carried out by WaterNSW occurred on the 3rd of December with the highest detection of PFBA detected on that day at Prospect WFP. 24mm of rainfall occurred in Sydney on the 2nd of December. Rainfall however doesn't explain the WaterNSW spike of 6:2 at Macarthur WFP on October 29th.

GIPA2 refers to Sydney Water PFAS detections within Cascade and North Richmond Water Filtration Plants. At Cascade WFP, PFBA accounted for 75% of Total PFAS detected between November 11 2024 & January 2 2025. Over 50% of the PFBA detections occurred over 4 days between November 11 and November 20 during filter Turbidity Analysis, at the Chlorine Residue Analyser, influent to control filter1 and water from filter 1 outlet.

At North Richmond, PFBA dominated Total PFAS detections, accounting for 51.6% of Total PFAS detected in GIPA2 Plant data between October 22 and December 12 2024.
